The simple soft square design of Forme features a practical lever handle with simple spout and deck mounted design that is perfect for any modern bathroom design.
Forme Bath Filler
SKU TAP013
Price £176.00
Including VAT
Finish CHROME
Material Brass
Installation Deck Mounted
General Specification
Construction Material
Brass
Installation type
Deck Mounted
Colour / Finish
Chrome
Tap / Shower specification
WRAS Approved
No
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Flexible Tails Included
No
Number of tap holes required
2
Handle Type
Lever
Swivel Spout
No
Inlet Connection
3/4 BSP
Outlet Connection
N/a
Tap Hole Diameter (mm)
32
Tap Type description
Manual Mixer
Includes Waste
No
Valve / Cartridge Type
Quarter Turn Cartridge
Cartridge Spare code
T8805-08
Flow Rates
0.2bar (l/min)
6.5
0.5bar (l/min)
10.5
1bar (l/min)
15.1
2bar (l/min)
17.6
3bar (l/min)
20.5
Product Transportation
Barcode: 5060500640729
Country of origin: CH
Commodity code: 8481801190

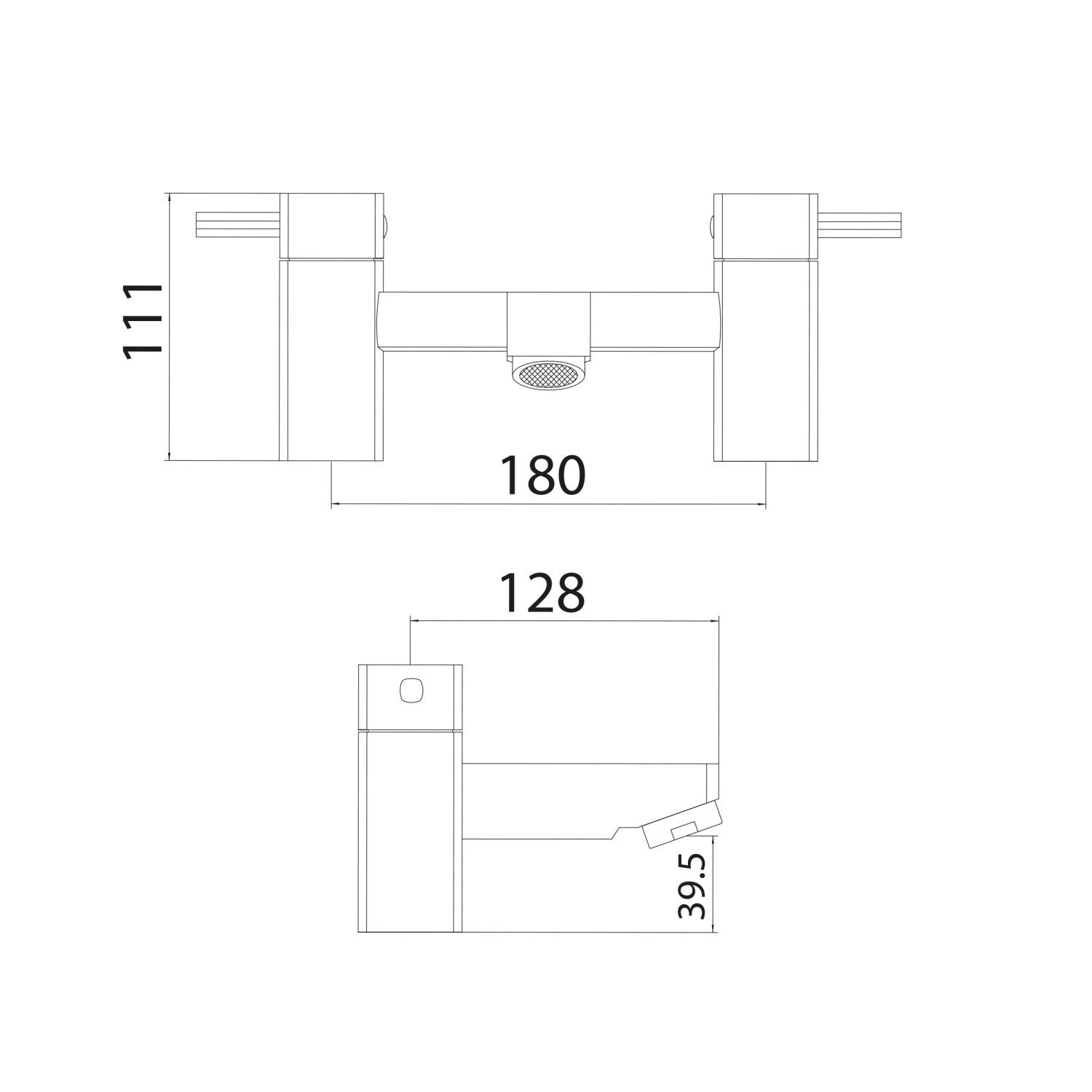

Product Measurements
Product Weight (KG): 1.875
Product Width (mm): 222.5
Product Height (mm): 112
Product Length (mm): 151
Primary Packed Measurements
Packaged Weight: 2.25
Packed Length: 24
Packed Width: 20
Packed Height: 16
Compliance DOP
HBDOC038 , HBDOC039 , HBDOC040 , HBDOC041
