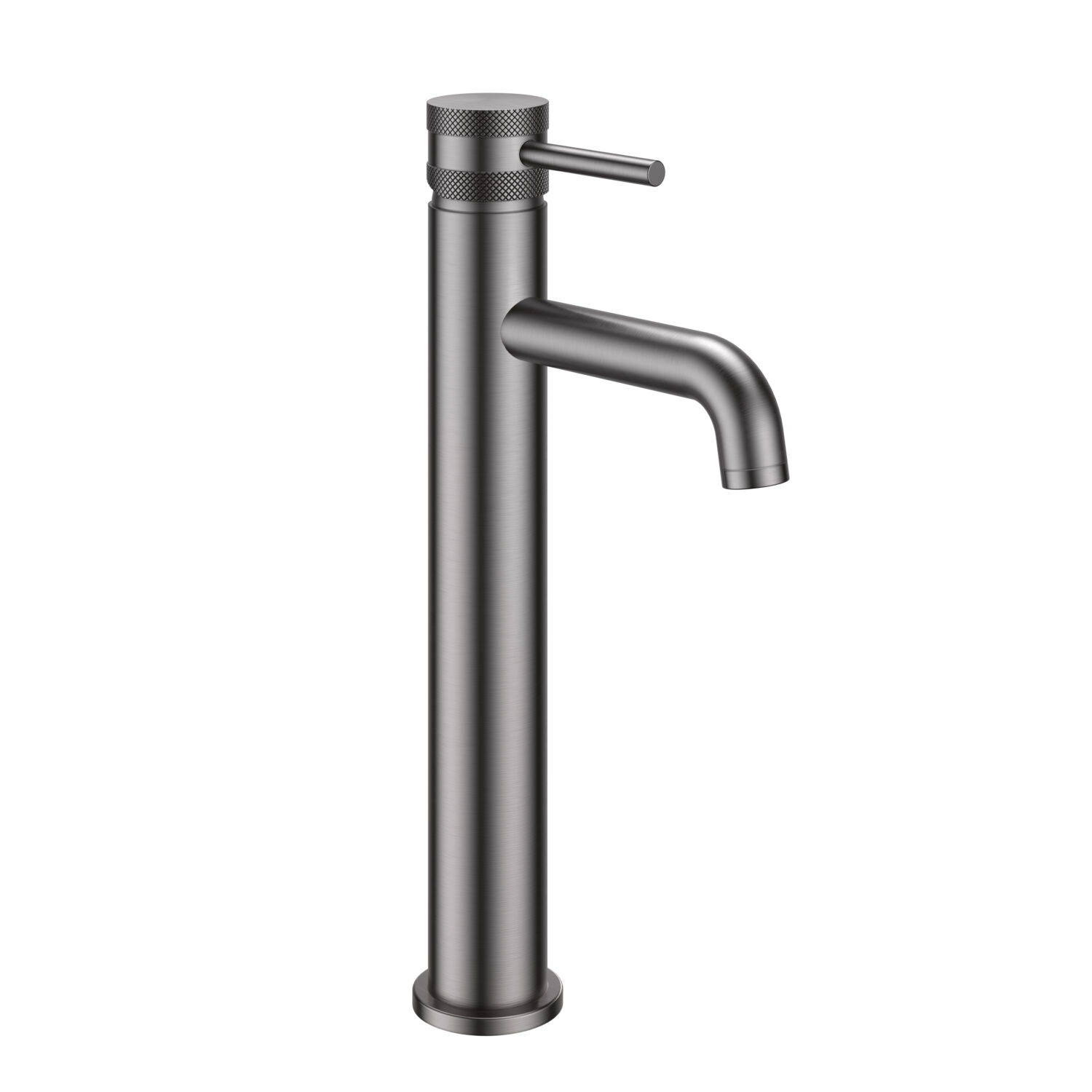

Core Tall Mono Basin Mixer Gunmetal

SKU NU-032
Price £263.00 Including VAT

Our collection of Core taps offers a minimalist design that will be a welcome addition to any modern bathroom design. Core is supplied with two handle options giving you the flexibility to change to overall look with a diamond cross hatch detail or a sleek smooth appearance.

With a broad range of options, Core is also available in chrome, matte black, brushed bronze, and brushed brass. Most of this collection is WRAS approved to meet the strictest standards for use in the UK.

Material   Gun Metal
Installation   Worktop Fixed
Constructions   Brass /Stainless steel 304 alloy

General Specification

Construction Material
Brass
Installation type
Deck Mounted
Colour / Finish
Gunmetal

Tap / Shower Attributes

WRAS Approved
Yes
WRAS Expiry Date
30/9/2027
TMV2
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
1
Handle Type
Lever
Swivel Spout
No
Inlet Connection
1/2" M10
Outlet Connection
N/a
Tap Hole Diameter (mm)
35
Tap Type description
Mono Mixer
Includes Waste
No
Valve / Cartridge Type
35mm Cartridge
Cartridge Spare code
N/a

Flow Rates

0.2bar (l/min)
2.7
0.5bar (l/min)
5
1bar (l/min)
6.6
2bar (l/min)
9.2
3bar (l/min)
11.4

Product Transportation

Barcode: 5060964934594
Country of origin: CH
Commodity code: 8481809000

Product Measurements

Product Weight (KG): 1.642

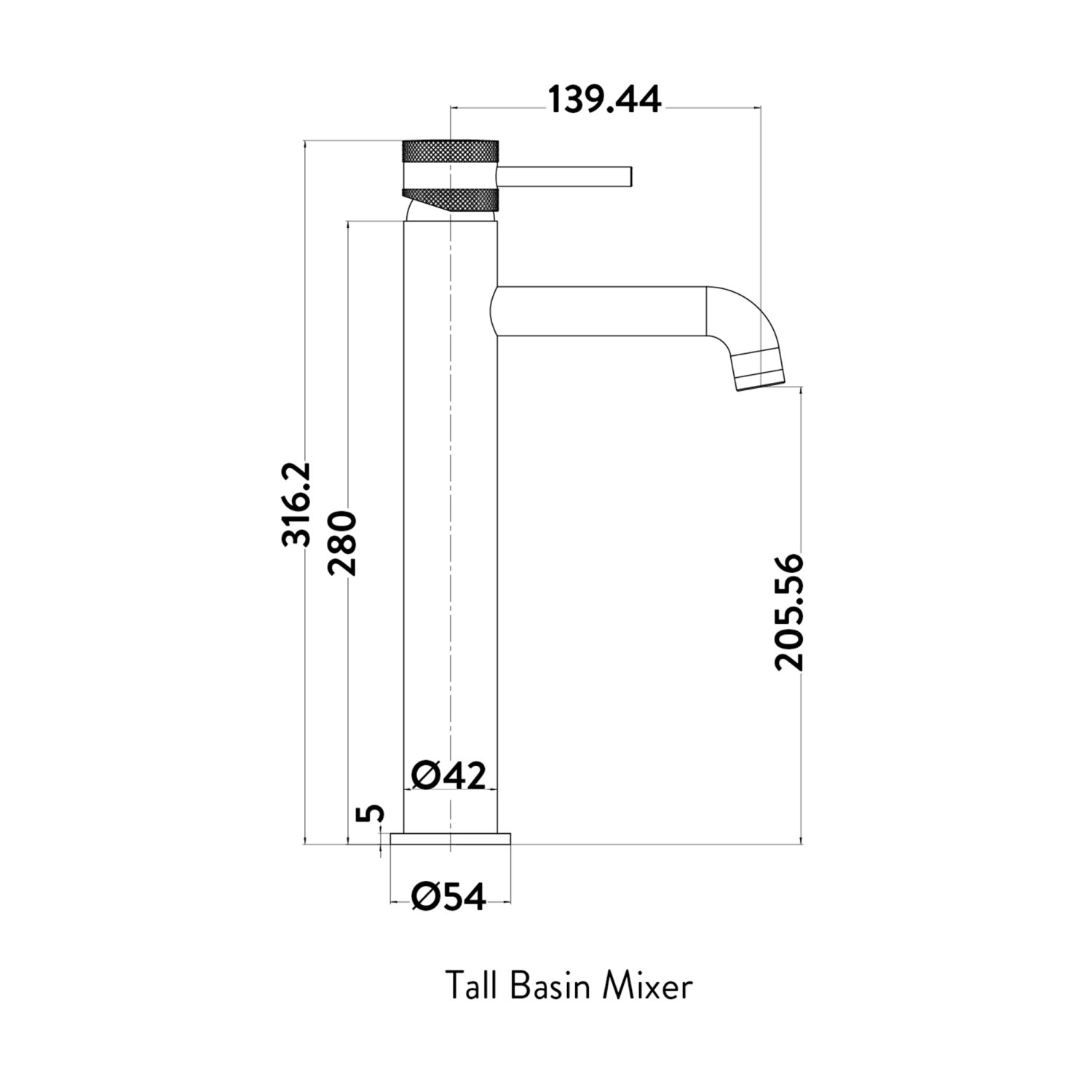

Product Width (mm): See line drawing
Product Height (mm):
Product Depth (mm):
Product Length (mm):

Primary Packed Measurements

Packaged Weight (KG): 1.929
Packed Length (mm): 390
Packed Width (mm): 200
Packed Height (mm): 60
