Round Exposed Bar Valve

SKU BARVALVE002L
Price £149.00 Including VAT
Finish   Chrome
Material   Brass
Installation   Exposed Bar Valve
Add to favourites
Request a brochure
Find a stockist
WRAS Approved Shower Valve

General Specification

Construction Material
Brass
Installation type
Exposed Bar Valve
Colour / Finish
Brass/ Chrome

Tap / Shower specification

WRAS Approved
No
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Flexible Tails Included
No
Number of tap holes required
N/a
Handle Type
Round
Swivel Spout
N/a
Inlet Connection
3/4 BSP
Outlet Connection
1/2 BSP
Tap Hole Diameter (mm)
N/a
Tap Type description
Exposed Bar Valve
Includes Waste
N/a
Valve / Cartridge Type
Thermostatic & Quarter Turn Cartridge
Cartridge Spare code
0

Flow Rates

0.2bar (l/min)
-
0.5bar (l/min)
8.8
1bar (l/min)
12.6
2bar (l/min)
18.1
3bar (l/min)
22.2

Showering specification

Anti-Scald
Yes
Shower Diverter function
No
Number of outlets
1
Thermostatic Tempurature control
Yes
Cool Touch
No
Shower Handset funtions
N/a
Minimum Working Pressure
0
Maximum Working Pressure
0
Shape
Round
Pipe Centres (mm)
150
Inlet Connection
3/4 BSP
Outlet Connection
1/2 BSP
Adjustable
n/a
Adjustment (mm)
n/a
Handle Type
Round

Spares Codes

Diverter Spares
Thermostatic & Quarter Turn Cartridge

Product Transportation

Barcode: 5060964933870
Country of origin: China
Commodity code: 8481804090

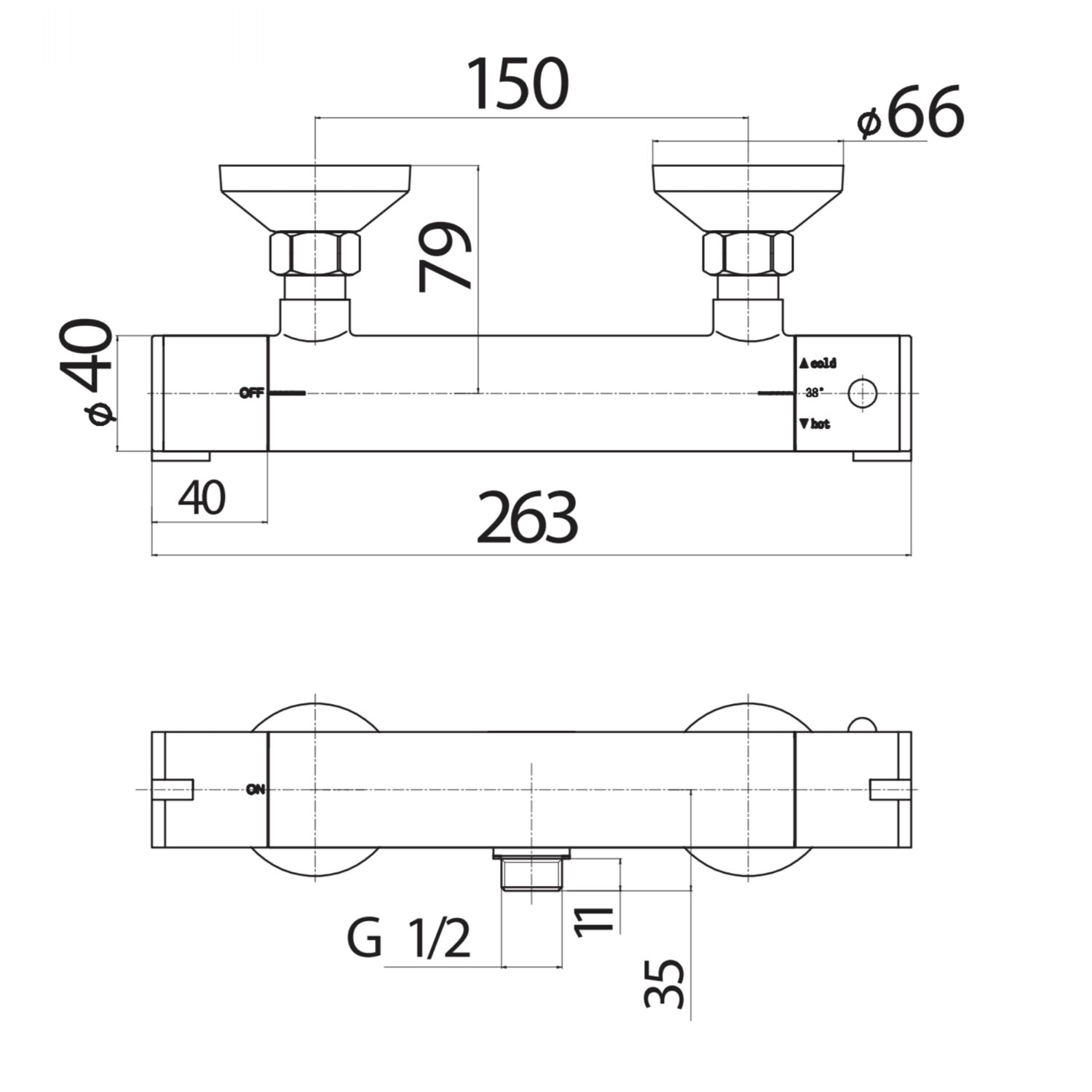

Product Measurement’s

Product Weight (KG): 1.365
Product Width (mm): 263
Product Height (mm): 40
Product Depth (mm): 99
Product Length (mm): 0

Primary Packed Measurements

Packaged Weight: 1.45
Packed Length: 344
Packed Width: 80
Packed Height: 70

Compliance DOP

HBDOC042 , HBDOC043
