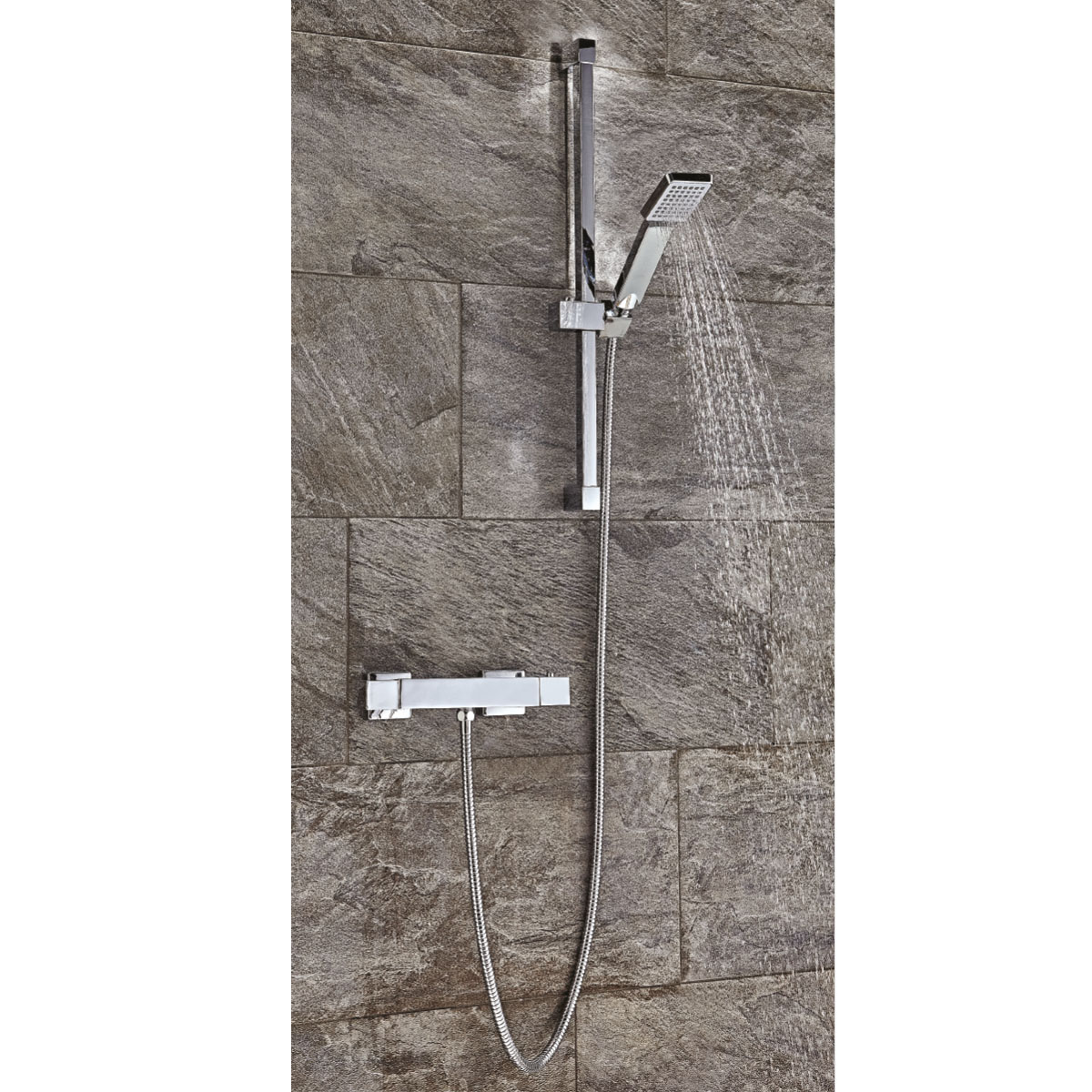

Square Exposed Bar Valve

SKU BARVALVE001L
Price £167.00 Including VAT
Finish   Chrome
Material   Brass
Installation   Exposed Bar Valve
WRAS Approved Shower Valve

General Specification

Construction Material
Brass
Installation type
Exposed Bar Valve
Colour / Finish
Brass/ Chrome

Showering specification

Anti-Scald
Yes
Shower Diverter function
No
Number of outlets
1
Thermostatic Tempurature control
Yes
Cool Touch
No
Shower Handset funtions
N/a
Minimum Working Pressure
0
Maximum Working Pressure
0
Shape
Square
Pipe Centres (mm)
150
Inlet Connection
3/4 BSP
Outlet Connection
1/2 BSP
Adjustable
n/a
Adjustment (mm)
n/a
Handle Type
Square
Flow Rate 0.5b (l/min)
8.8
Flow Rate 1 b (l/min)
12.6
Flow Rate 2 b (l/min)
18.1
Flow Rate 3 b (l/min)
22.2

Spares Codes

Diverter Spares
Thermostatic & Quarter Turn Cartridge
Thermostatic cartridge Spares
0

Product Transportation

Barcode: 5060964933078
Country of origin: China
Commodity code: 8481804090

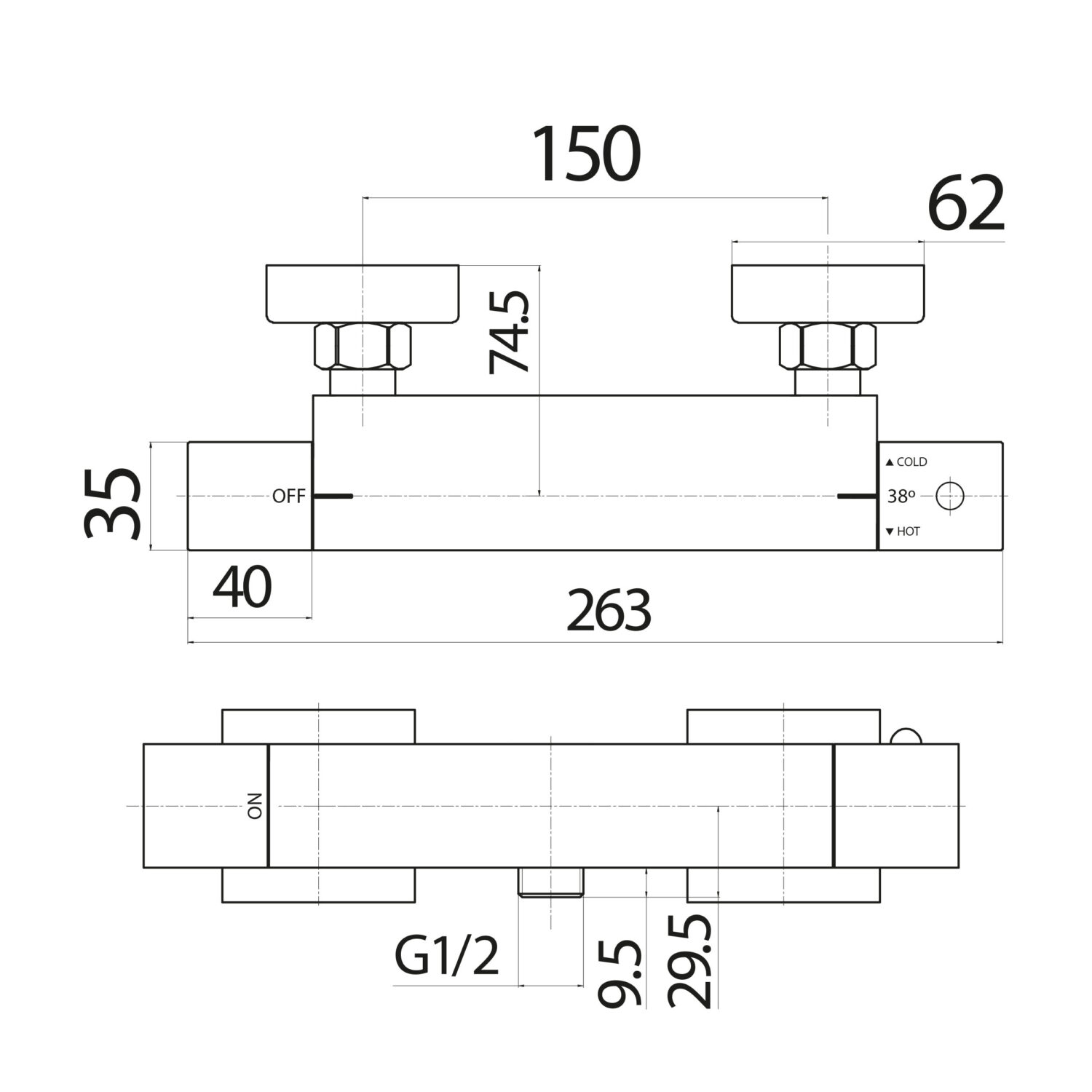

Product Measurement’s

Product Weight (KG): 1.67
Product Width (mm): 263
Product Height (mm): 35
Product Depth (mm): 92

Primary Packed Measurements

Packaged Weight: 1.72
Packed Length: 344
Packed Width: 80
Packed Height: 70
