Wall Mounted Bath Shower Mixer & Handset Brushed Bronze

SKU NU-152
Price £600.00 Including VAT

Our collection of Core taps offers a minimalist design that will be a welcome addition to any modern bathroom design. Core is supplied with two handle options giving you the flexibility to change to overall look with a diamond cross hatch detail or a sleek smooth appearance.

With a broad range of options, Core is also available in gunmetal, matte black, brushed bronze, and brushed brass. Most of this collection is WRAS approved to meet the strictest standards for use in the UK.

Colour / Finish   Brsuhed Bronze
Installation   Wall Mounted
Construction Material   Brass /Stainless steel 304 alloy

General Specification

Colour / Finish
Brushed Bronze
Installation type
Wall Mounted
Construction Material
Brass /Stainless steel

Tap / Shower specification

WRAS Approved
No
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Inlet Connection
1/2"
Shower Type description
Wall Mounted
Valve / Cartridge Type
Thermostatic
Installation Depth Min
42mm
Installation Depth Max
52mm

Flow Rates

0.2bar (l/min)
3.6
0.5bar (l/min)
7.8
1bar (l/min)
8.6
2bar (l/min)
11.7
3bar (l/min)
15.6
5bar (l/min)
20.4

Product Transportation

Barcode: 5060991257376
Country of origin: CH
Commodity code: 8481801190

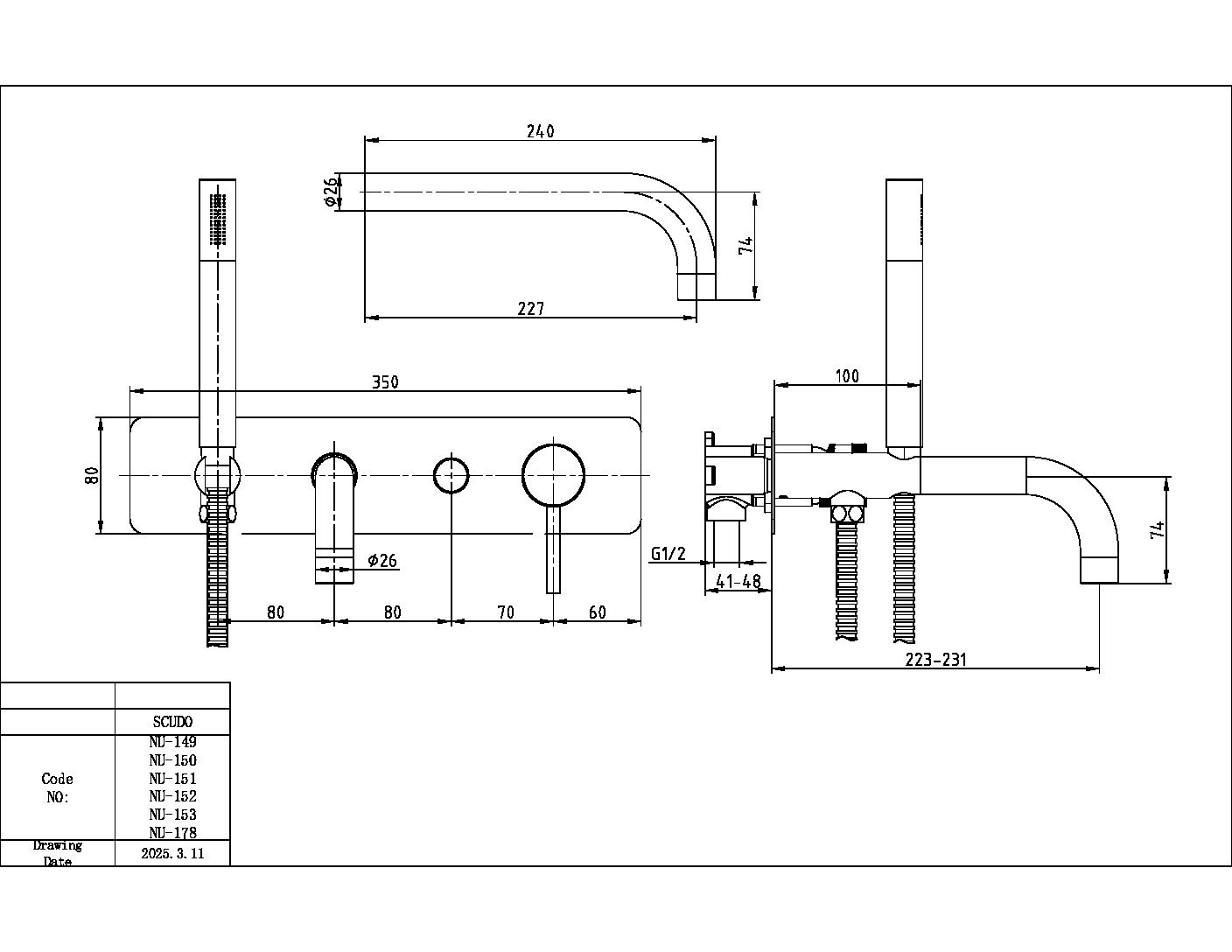

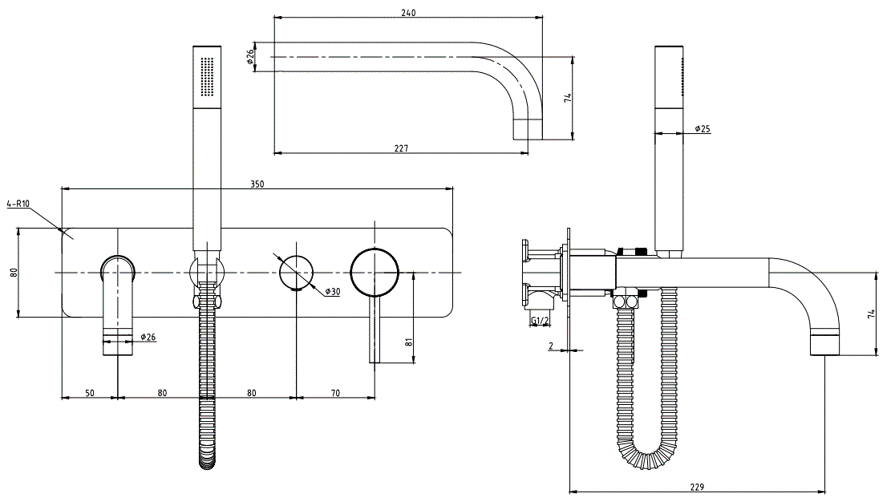

Product Measurements (See Line Drawing)

Product Weight (KG): TBC
Product Width (mm): 350
Product Height (mm): 80
Product Depth (mm): 240
Installation Depth
40mm – 60mm Maximum

Primary Packed Measurements

Packaged Weight: TBC
Packed Height: 150
Packed Width: 460
Packed Length: 255
